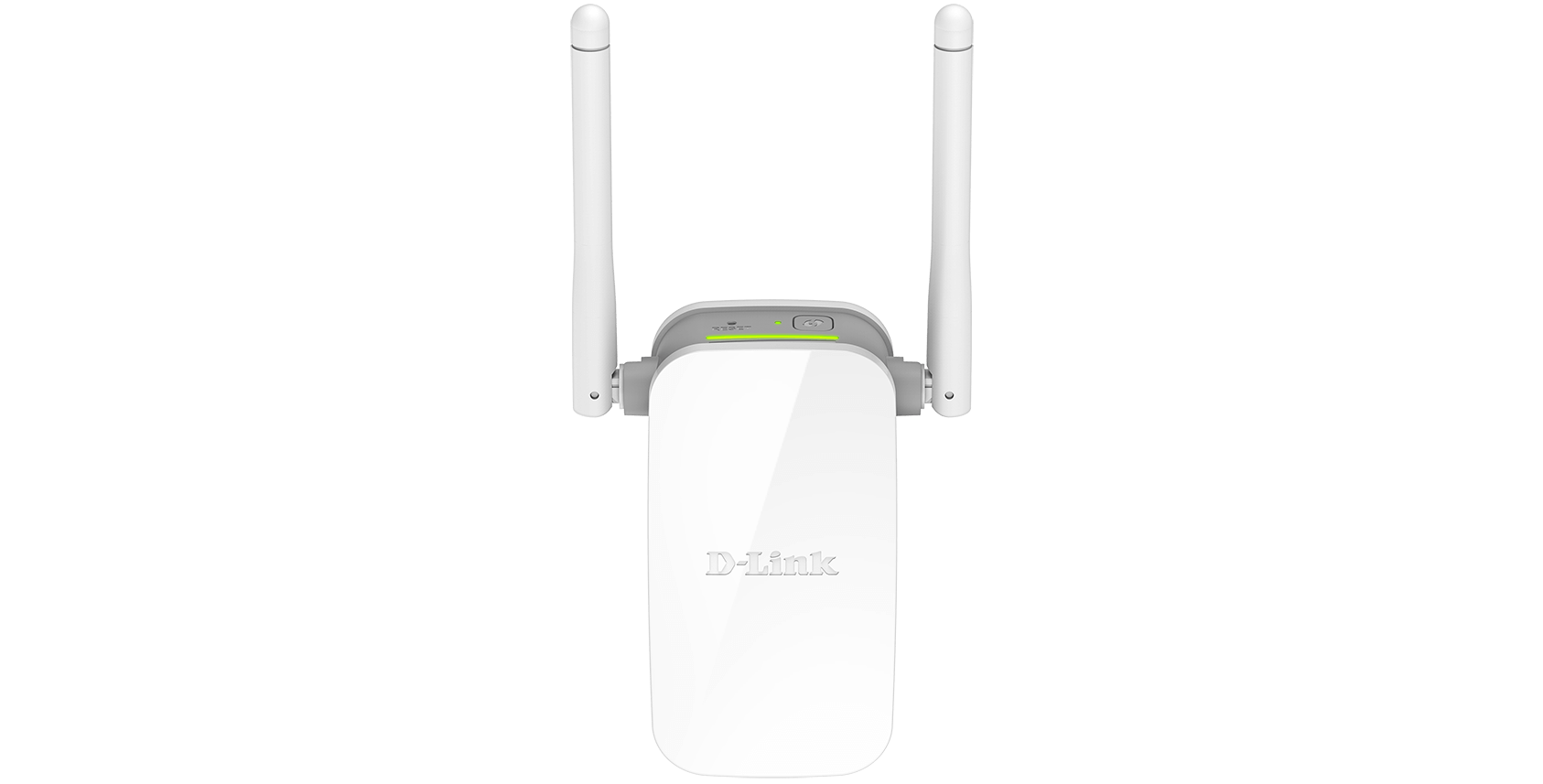

D-Link DAP-1325 Wireless Range Extender N300

Device Interfaces

• 802.11n/g Wireless LAN • Reset Button

• 10/100 Fast Ethernet Port • WPS Button

LEDs

• Status / WPS

• 3 segment Wi-Fi signal strength indicator

Standards

• IEEE 802.11n • IEEE 802.3u

• IEEE 802.11g

Antennas

• Two external antennas

PlugType

• Region dependent

Functionality

WirelessSecurity

• Wi-Fi Protected Access (WPA / WPA2) • WPS (PBC)

Advanced Features

• D-Link One-Touch Extender Setup

Device Management

• Supports QRS Mobile app for iPhone ,iPad, iPodtouch, and Android mobile devices

• WebUI

Physical

Dimensions

• 97.9 x 50.7 x 48.7 mm

Weight

• 97 grams

Power

• Input: 110 to 240 VAC, 50/60 Hz

Temperature

• Operating: 0 to 40°C • Storage:- 20 to 70°C

Humidity

• Operating: 10% to 90% non-condensing • Storage: 5% to 90% non-condensing
