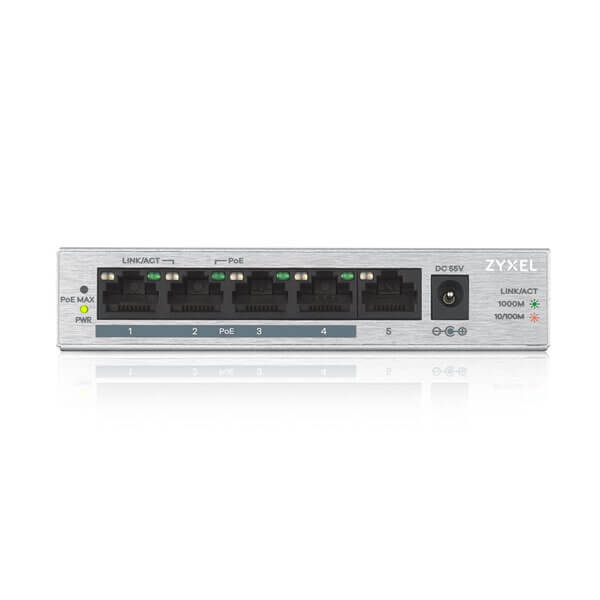

Zyxel GS1005-HP, 5 Port Gigabit PoE+ unmanaged desktop Switch, 4 x PoE, 60 Watt

Zyxel GS1005-HP, 5 Port Gigabit PoE+ unmanaged desktop Switch, 4 x PoE, 60 Watt
The Zyxel GS1005HP is equipped with 5 gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1005HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1005HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.

Technické specifikace
SYSTÉMOVÉ SPECIFIKACE
Standard:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3 Nway auto-negotiation
• IEEE 802.3x full duplex operation and flow control
• IEEE 802.3az Energy Efficient Ethernet

Performance:

• Data transfer rate (half duplex/full duplex): Ethernet: 10/20 Mbps; Fast Ethernet: 100/200 Mbps; Gigabit Ethernet: 1000/2000 Mbps
• MAC address table: 2 K
• Memory buffer: 128 KB
• Switching fabric (non-blocking): 10 Gbps

Features:

• Compatible With IEEE 802.3af and 802.at Compliant PDs
• Auto-MDI/MDIX in all ports
• EEE802.3x Flow Control
• IEEE 802.1p QoS
• Jumbo frame support up to 9 KB

HADWAROVÉ SPECIFIKACE
Interface: 5 RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
PoE Ports (RJ45):

• Standard: 802.3af and 802.3at compliant
• 4 PoE+ ports(Port1- Port4), up to 30W per port
• Total PoE Budget : 60W

LED Indicator:

• PWR: Power
• PoE MAX: Amber: PoE power output over 50W (total budget 60W)
• Per port: Link/Activity: Amber: 10/100 Mbps; Green: 1000 Mbps

Port1- Port4: PoE+: Green: PoE supported
Power Supply:

• AC-to-DC external power adapter
• Input: 100-240 V AC
• Output: 55V DC/1.3A

OBSAH BALENÍ

• GbE Unmanaged PoE Switch
• Power adapter
• Quick Start Guide
